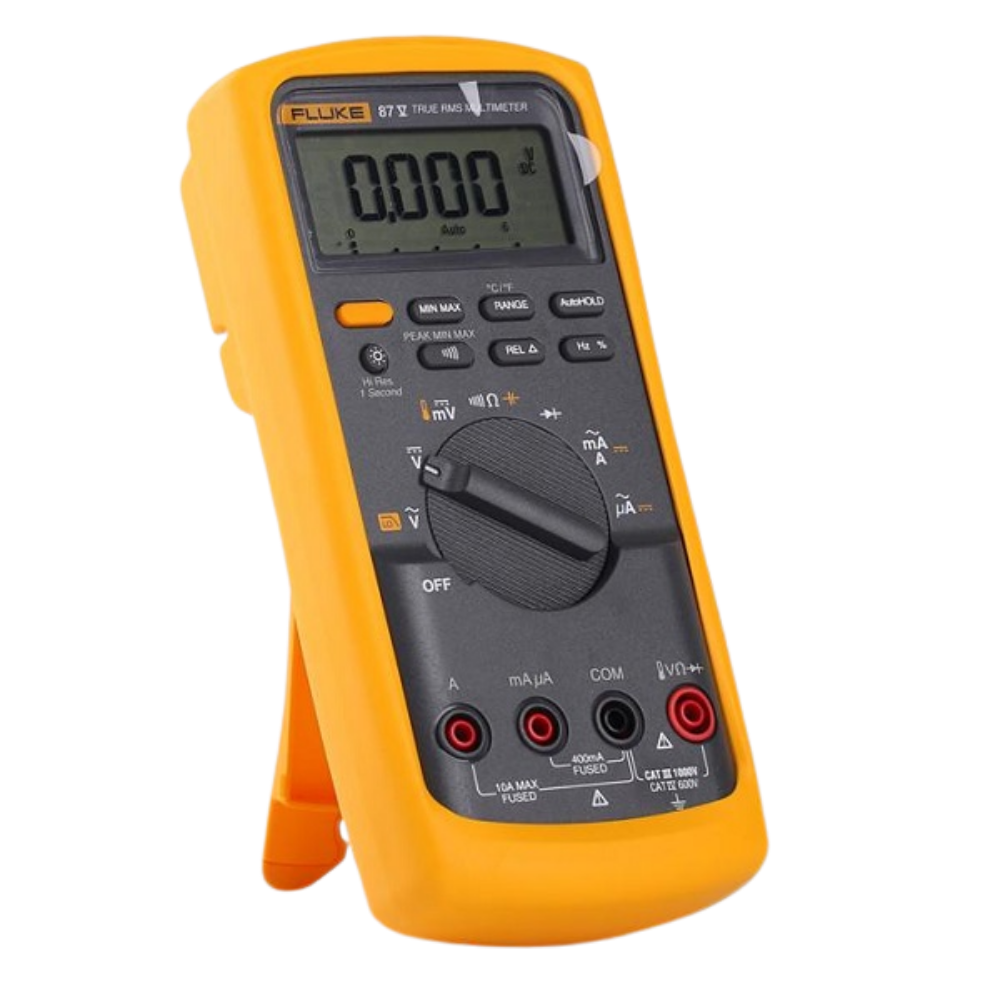

Fluke 87-V True RMS Industrial Multimeter – Precision for Professional Use

The Fluke 87-V True RMS Industrial Multimeter is a top-tier instrument engineered for accurate troubleshooting of industrial electrical and electronic systems. Known for its ruggedness, precision, and reliability, it provides true RMS measurements on variable frequency drives (VFDs) and complex signal environments. Designed for demanding industrial applications, the Fluke 87-V ensures precise readings, safety, and durability in every use.

Key Features:

• True RMS accuracy for reliable measurements on non-linear signals

• Measures AC/DC voltage and current, resistance, frequency, and capacitance

• Built-in thermometer for direct temperature measurement

• Selectable filter for accurate VFD motor drive readings

• Large backlit display with analog bar graph and data hold function

• Auto and manual ranging for versatility

• CAT IV 600V / CAT III 1000V safety rating

• Rugged design with impact-resistant case for industrial environments

• Compatible with Fluke test leads, probes, and clamps

Applications:
Ideal for industrial electricians, maintenance engineers, field technicians, and electronic service professionals who demand high accuracy and reliability.

Voltage DC: Maximum voltage 1000 V ±(0.05% + 1)
Maximum resolution 10 µV

Voltage AC: Maximum voltage 1000 V ±(0.7% + 2) True RMS
AC bandwidth 20 kHz with low pass filter; 3 db @ 1 kHz
Maximum resolution 0.1 mV

Current DC Maximum amps 10 A (20 A for 30 seconds maximum), ±(0.2% + 2)
Maximum resolution 0.01 µA

Current AC: Maximum amps: 10 A (20 A for 30 seconds maximum) ±(1.0% + 2) True RMS
Maximum resolution 0.1 µA

Resistance: Maximum resistance: 50 MΩ ±(0.2% + 1)
Maximum resolution 0.1 Ω

Capacitance Maximum capacitance 9,999 µF ±(1% + 2)
Maximum resolution 0.01 nF

Frequency Maximum frequency 200 kHz ±(0.005% + 1)
Maximum resolution 0.01 Hz

Duty cycle Maximum duty cycle 99.90% ±(0.2% per khz + 0.1%)
Maximum resolution 0.10%

Temperature measurement –200.0 °C – 1090 °C –328.0 °F – 1994.0 °F

80 BK temperature probe –40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater

Conductance Maximum conductance 60.00 nS Accuracy ±(1.0% + 10)
Maximum resolution 0.01 nS

Diode Range 3 V
Resolution 1 mV ±(2% + 1)

Duty cycle range Accuracy Within ±(0.2% per kHz + 0.1%)
Weight 355 g 624 g – with holster

Display
Digital 6000 counts updates 4/sec., 19,999 counts in high–resolution mode
Analog 32 segments, updates 40/sec

Frequency 19,999 counts, updates 3/sec at > 10 Hz
Battery Life Alkaline ~400 hours typical, without backligh

Warranty: As per Flukes warranty policy- 1 Year
