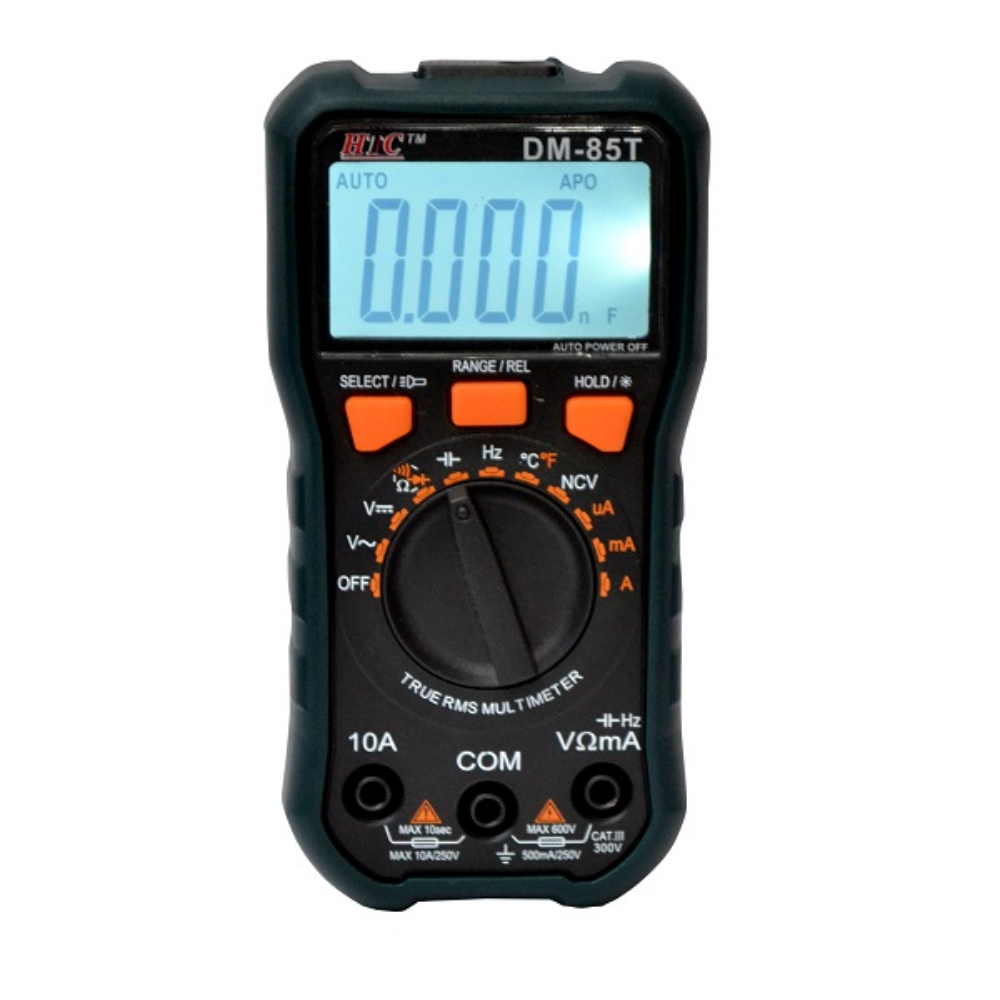

HTC Instruments DM 85T Digital Multimeter- Trms

HTC Instruments DM 85T Digital Multimeter- Trms

The HTC Instruments DM 85T is a compact and feature-rich digital multimeter designed for professionals and hobbyists alike. With a 6000-count True RMS display, it offers precise measurements for a wide range of electrical parameters. Its robust design and advanced features make it suitable for various applications, including electrical diagnostics, electronics troubleshooting, and educational purposes.

🔧 Key Features

• True RMS Measurement: Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.

• Auto-Ranging: Automatically selects the appropriate measurement range, simplifying operation.

• Non-Contact Voltage (NCV) Detection: Detects the presence of voltage without direct contact, enhancing safety.

• Duty Cycle Measurement: Measures the percentage of time a signal is active.

• hFE Transistor Test: Allows testing of transistors to determine their gain (hFE).

• Diode Test: Checks the functionality of diodes.

• Continuity Buzzer: Audible alert for continuity testing, aiding in quick diagnostics.

• Backlit Display: Large, easy-to-read LCD display with backlight for visibility in various lighting conditions.

• Data Hold Function: Freezes the current reading on the display for easy recording.

• Auto Power Off (APO): Conserves battery life by automatically turning off the device after a period of inactivity.

• Torch Light: Built-in LED torch for illuminating work areas in low-light conditions.

📊 Specifications

• DC Voltage: 600mV, 6V, 60V, 600V

• AC Voltage: 6V, 60V, 600V

• DC Current: 600µA, 6000µA, 60mA, 600mA, 6A, 10A

• AC Current: 600µA, 6000µA, 60mA, 600mA, 6A, 10A

• Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ

• Capacitance: 60nF, 600nF, 6µF, 60µF, 600µF, 6mF, 60mF

• Frequency: 1MHz

• Temperature: -40°C to 1000°C

• Display: 3½ digit, 6000-count LCD with backlight

• Power Supply: 2 x 1.5V AAA batteries

• Dimensions: 146mm x 73mm x 26mm

• Weight: Approximately 182g

🛠️ Applications

• Electrical Troubleshooting: Ideal for diagnosing issues in electrical circuits and components.

• Home Appliance Repair: Useful for testing and repairing household electrical appliances.

• Educational Use: Suitable for teaching and learning about electrical measurements and concepts.

• Field Testing: Portable design makes it convenient for on-site measurements and inspections.

  Display, LCD Count: 6000
  – DC Voltage: 600mV/6V/60V/600V/600V
  – AC Voltage: 6V/60V/600V
  – DC Current: 600uA/ 6000uA/ 60mA/ 600mA/6A/ 10A
  – AC Current: 600uA/ 6000uA/ 60mA/ 600mA/6A/ 10A
  – Capacitance: 60nF- 60mF
  – Frequency: 1MHz
  – Temperature: – 40- 1000 Degree Celcuis
  – Resistance: 600ohms/6Kohms/60kohms/600kohms/6Mohms/60Mohms
