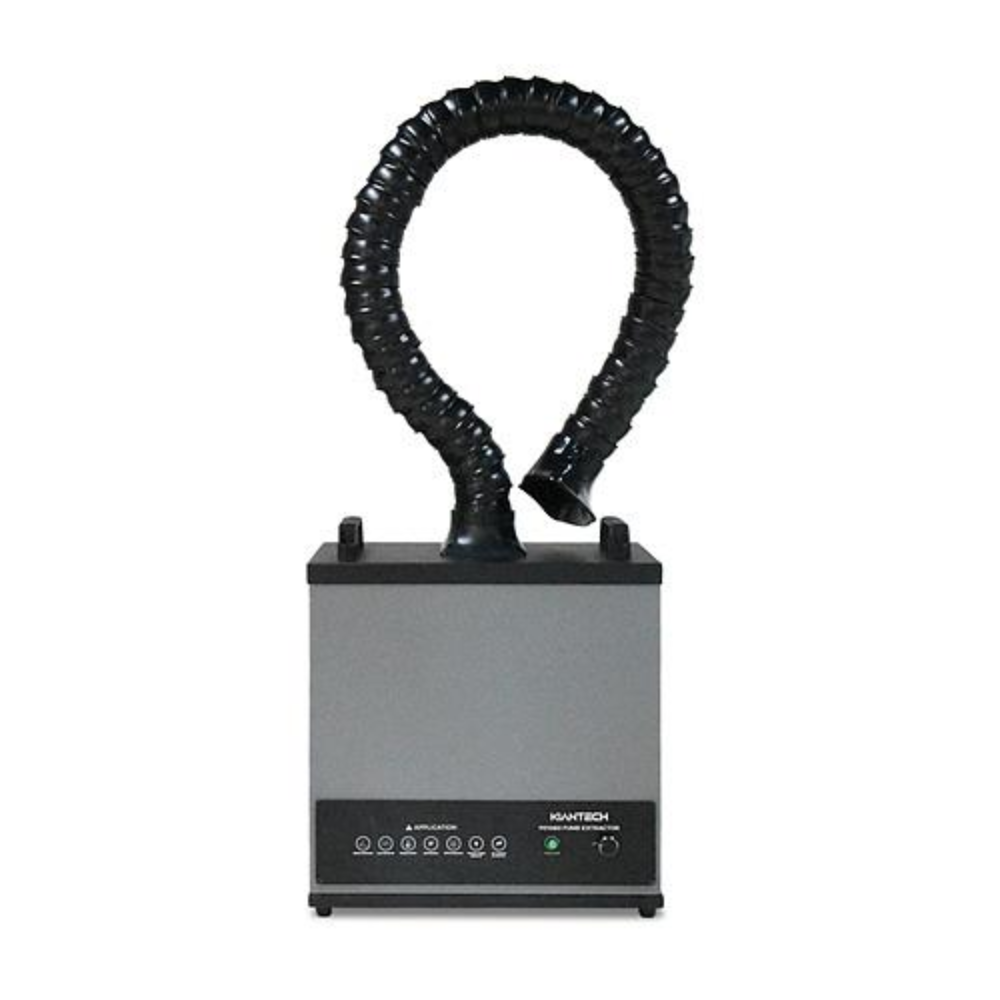

KianTech FE1080 Fume Extractor

Original price was: ₹48,500.Current price is: ₹42,500.

16 products sold in last 19 hours
Selling fast! Over 15 people have in their cart

Appearance

  • The fuselage integrated design, using metal frame structure, high quality cold rolled steel plate electrostatic spraying process, durable，simple, economical and practical.
  • Both sides are equipped with high-quality plastic handles, which are delicate, stable and reliable, and easy to handle.
  • The unique shape curve design of the air inlet flange is more suitable with the principle of fluid dynamics.
  • Install humanized stepless speed governor, which can adjust the air volume and suction size.
  • The product is small and does not need to be installed, which is conducive to clean and saving working space and easy to move.

Fan

  • Using brushless DC motor, built-in controller form, performance and quality is more guaranteed.
  • Stable operation, low noise, high efficiency, low energy consumption, long working time, no regular maintenance is required, and the cost is lower.
  • The wind wheel adopts the vortex backward design, and the special alloy material can effectively prevent the wind wheel from being corroded.
  • The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably.
  • High air volume, large suction, higher filtration efficiency.

ilter system

  • Three-fold filtration design, Filtering layer by layer to ensure that harmful gas is filtered out more efficiently, the filtering efficiency can reach 99.97 %.
  • Modular design, layers of protection, all three layers filters can be replaced separately, the service life of the filters is longer, and the replacement cost is lower.
  • The unique internal sealing structure, coupled with special sealing materials, enables all harmful substances to pass through the filtration system, and the filtration efficiency is higher.
  • The built-in cycle active filtration method avoids the discharge of indoor cooling / heating air from the outdoor and does not destroy the temperature and humidity environment of the operating range.

Smoke collecting device

  • The machine is equipped with a universal smoking arm, which can be changed and adjustable (the length can be customized according to customer’s requirements).
  • The end is equipped with a new type of smoke collection silicone nozzle, which has a unique shape and higher smoking efficiency.
  • Simple installation, easy to use, without additional pipeline needed.
26 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
KianTech FE1080 Fume Extractor

The KianTech FE1080 Fume Extractor is a robust benchtop extraction system designed for professional electronics, soldering, laser workstations, and similar settings where hazardous smoke, flux gases, and fine particulates need to be removed quickly and cleanly. It features a high-performance suction capability, advanced three-layer filtration including carbon + HEPA, and a universal adjustable smoke arm for precise capture at the source.

Key Features & Benefits:

  • Dual voltage compatibility: AC 110 V / 220 V input.

  • Rated power: ~200 W (strong suction power) for intensive use.

  • Suction / airflow: ~258 m³/h via Φ75 mm inlet.

  • Filtration efficiency: filters 0.3 µm particles at up to ~99.97% with three-layer filtering (pre-filter, main HEPA/carbon, final) for serious protection.

  • Noise level: Typical 50-60 dB—reasonable for a production environment.

  • Dimensions / weight: ~420 × 240 × 450 mm, weight ~16 kg.

  • Built with a metal/steel housing and includes a universal 360° adjustable suction pipe (about 1.3 m length) so you can position extraction exactly at the soldering point.

  • Maintenance friendly: separate replaceable filter elements reduce ongoing cost, and the internal sealing and filtration design ensures captured contaminants don’t leak back into the workspace.

  • KianTech FE1080 fume extractor

  • FE1080 soldering smoke absorber

  • KianTech smoke removal unit FE1080

  • 200 W fume extractor 258 m³/h

  • benchtop fume extraction system FE1080

  • carbon + HEPA filter solder fume extractor

  • soldering station air purifier FE1080

  • electronics workstation fume extractor 0.3 µm 99.97%

  • 360° adjustable smoke arm fume extractor

  • replaceable filter fume extractor FE1080

Ideal Use Cases:

  • Dedicated electronics assembly benches or repair stations where regular soldering produces flux fumes, lead/rosin smoke, etc.

  • Laser cutting/engraving setups, moderate production lines where fumes must be controlled and workspace clean.

  • Environments where ambient airflow must be preserved (since the unit uses internal recirculation rather than exhausting to outside).

Usage Tips:

  • Position the suction arm as close to the soldering point as feasible (10-20 cm) for best capture before the fumes spread.

  • Monitor filter change interval: once you notice reduced suction or lingering odour, replace the filters to maintain efficiency.

  • Ensure the work-area has enough clearance around the unit for airflow; even though it recirculates, it still needs space.

  • While the unit handles local extraction, consider general room ventilation too, especially if multiple soldering stations share the space.
