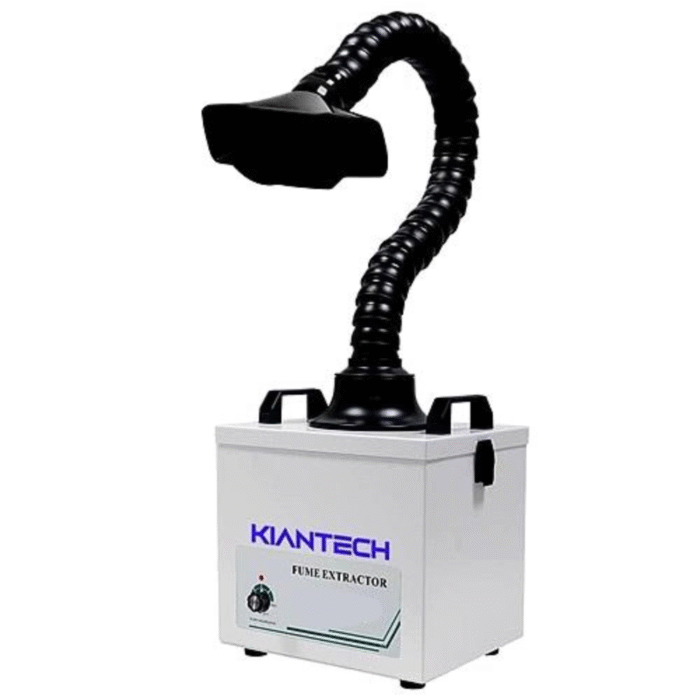

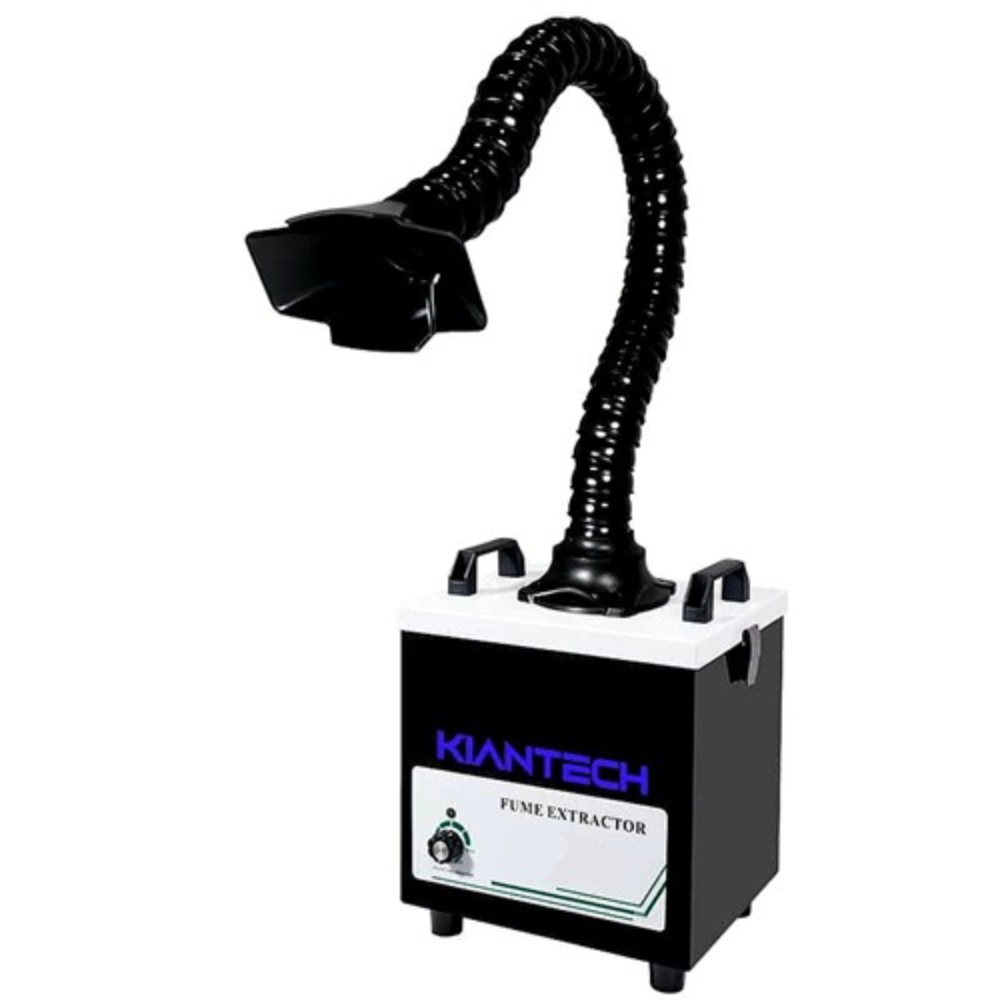

KianTech FE1100 Fume Extractor
The smoke and dust purification system used by this product is designed by our company for special manual soldering, soldering iron, electrical maintenance station, moxibustion beauty, laser marking, laboratory, hospital and other workplaces. It has a good comprehensive purification effect for dust, smoke, waste gas and other toxic and harmful gases produced in the above places.
- Power 100W
- Colour Variant: Black
- Pipe Diameter Φ50mm
- Air Volume 235m³/h
- Filter Layers 3 Layers
Features:
- Brushless motor, low noise, high speed, stable operation, long life, low power consumption, high efficiency (motor zero maintenance, zero consumables);
- Eddy current fan design, fatigue resistance, stable operation, strong air volume, large suction force, high efficiency:
- The machine is installed with stepless governor, and the air volume can be adjusted at will;
- Multiple filtration design to ensure that the toxic and harmful substances in the smoke are thoroughly filtered and effectively protect the environment and human health;
- All filter elements can be replaced separately, extending the service life of the filter element and reducing the use cost of the filter element;
- Simple and convenient installation, disassembly and simple assembly can be used, conducive to the cleanliness and beauty of the working space;
- All metal frame structure, anti impact and vibration;
- Casters are installed at the bottom for easy movement.
- 2 Year Warranty
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
KianTech FE1100 Fume Extractor
The KianTech FE1100 Fume Extractor is a professional-grade benchtop air-filtration unit designed for soldering stations, electronics maintenance benches, laser lab work, and other environments where smoke, flux fumes, dust and other airborne contaminants must be efficiently removed. According to the datasheet, this model features a brushless motor for quiet, stable operation, a powerful fan design for strong suction, and a three-layer filtration system (pre-filter + medium + main HEPA/activated carbon stage) for high cleaning efficiency.
Key technical highlights include:
-
Rated power: 100 W.
-
Airflow (suction) of approx. 235 m³/h.
-
Filter system with 3 layers, and filtration efficiency stated as > 0.3 µm at ~94.2%.
-
Noise level: below 50 dB, making it suitable for quieter workspaces.
-
Inlet diameter: φ75 mm, and the unit comes with an approx. 1 m suction pipe for flexible positioning.
-
Dimensions: ~ 270 × 220 × 300 mm, weight ~7.8 kg — compact enough for a single dedicated workstation.
-
Features like caster wheels for mobility, metal frame for durability, and replaceable filter elements to reduce ongoing operating cost.
-
