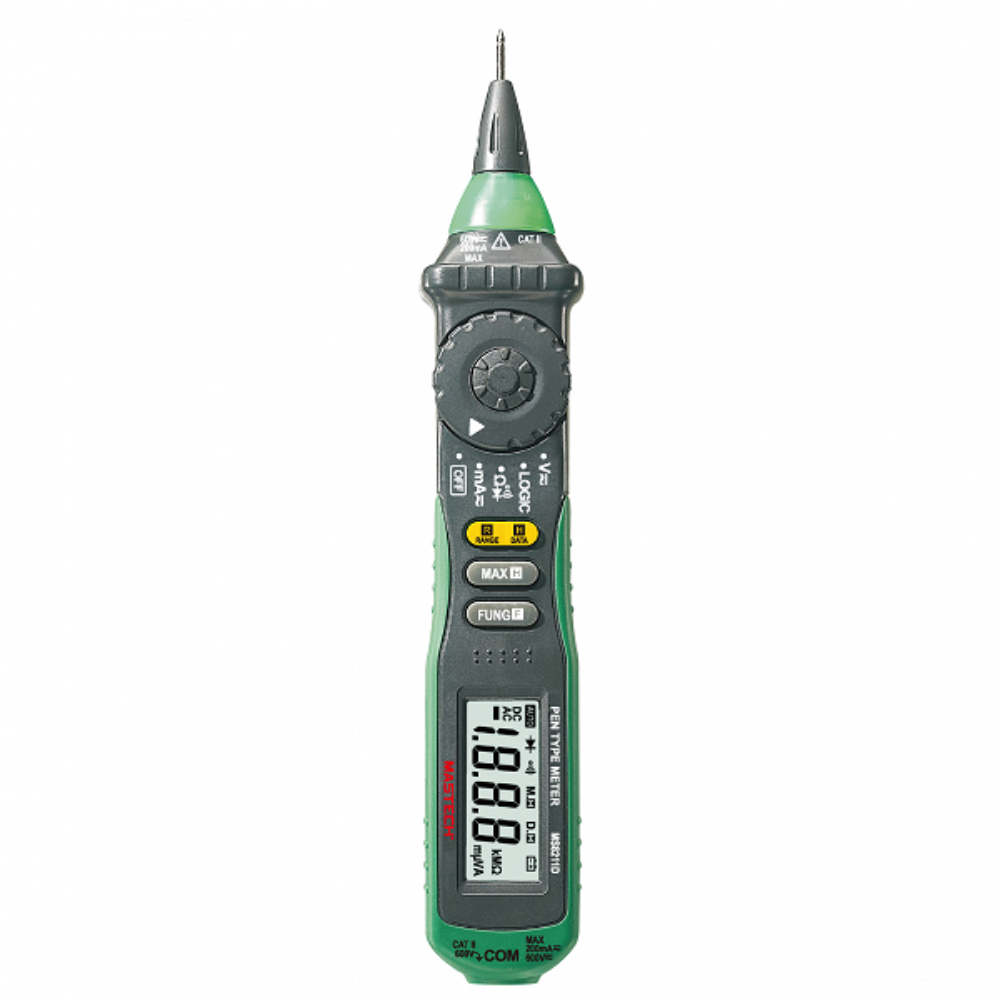

Mastech MS8211D – Pen-type Digital Multimeter

Mastech MS8211D – Pen-type Digital Multimeter

The Mastech MS8211D is a compact and versatile pen-type digital multimeter designed for professionals and DIY enthusiasts. Its slim, pen-style form factor allows for easy one-handed operation, making it ideal for tight spaces and quick measurements. Equipped with both auto and manual ranging capabilities, this multimeter offers flexibility in various testing scenarios. It features a 2000-count LCD display for clear readings and includes essential functions such as data hold, maximum value hold, and a continuity buzzer. The MS8211D is also capable of logic level testing, indicating high or low voltage states, which is particularly useful for digital circuit diagnostics.

🔑 Key Features

• Pen-Type Design: Slim and lightweight for easy portability and one-handed operation.

• Auto & Manual Ranging: Provides flexibility in measurement selection.

• 2000-Count LCD Display: Ensures clear and precise readings.

• Logic Level Test: Indicates high (>3.5V) or low (<3.5V) voltage states.

• Continuity Buzzer: Alerts when resistance is below 50Ω, aiding in quick circuit checks.

• Data Hold Function: Freezes the current reading on the display for easy recording.

• Maximum Value Hold: Captures and holds the maximum value during measurements.

• Retractable Tip: Ensures safe storage and prevents damage when not in use.

• Auto Power Off: Conserves battery life by automatically turning off the device after a period of inactivity.

• Low Battery Indicator: Alerts the user when battery replacement is needed.

📊 Specifications

• DC Voltage: 200mV, 2V, 20V, 200V, 600V

• AC Voltage: 200mV, 2V, 20V, 200V, 600V

• DC Current: 20mA, 200mA

• AC Current: 20mA, 200mA

• Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ

• Diode Test: Open voltage 1.5V

• Logic Level Test: >3.5V (High), <3.5V (Low)

• Display: 2000-count LCD with backlight

• Power Supply: 2 x 1.5V AAA batteries (not included)

• Dimensions: 208mm x 38mm x 29mm

• Weight: Approximately 110g

• Safety Rating: CAT II 600V

🛠️ Applications

• Electrical Troubleshooting: Ideal for diagnosing issues in electrical circuits and components.

• Digital Circuit Analysis: Useful for testing logic levels in digital systems.

• DIY Projects: Perfect for hobbyists working on various electronic projects.

• Educational Use: Great for teaching and learning about electrical measurements and concepts.

• Automotive Diagnostics: Suitable for testing automotive electrical systems.
