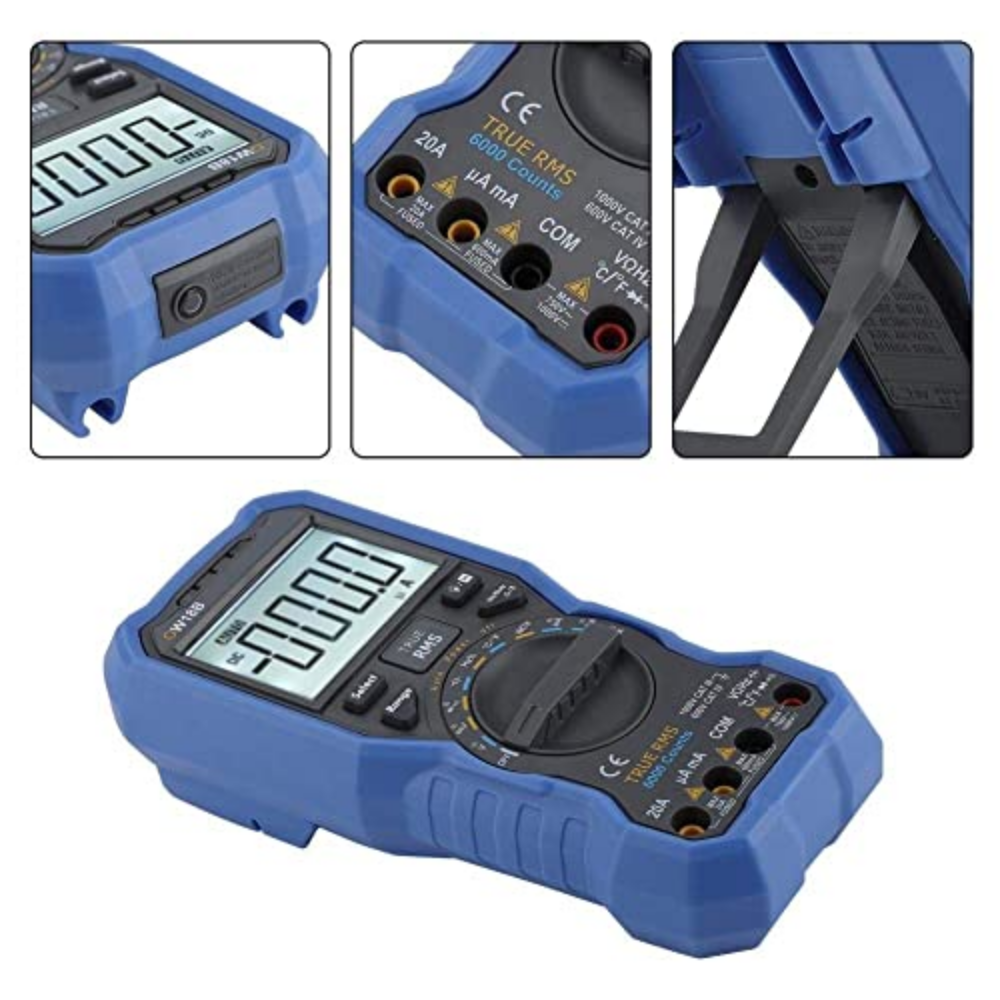

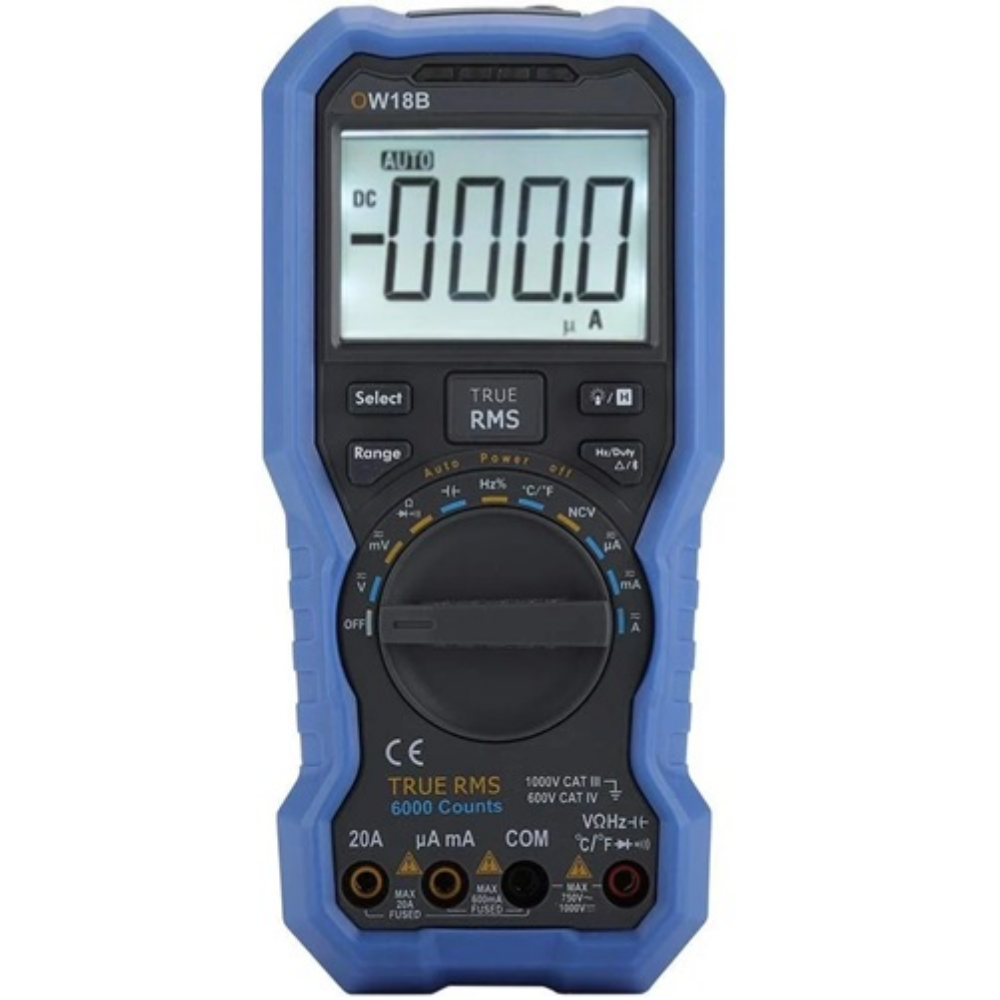

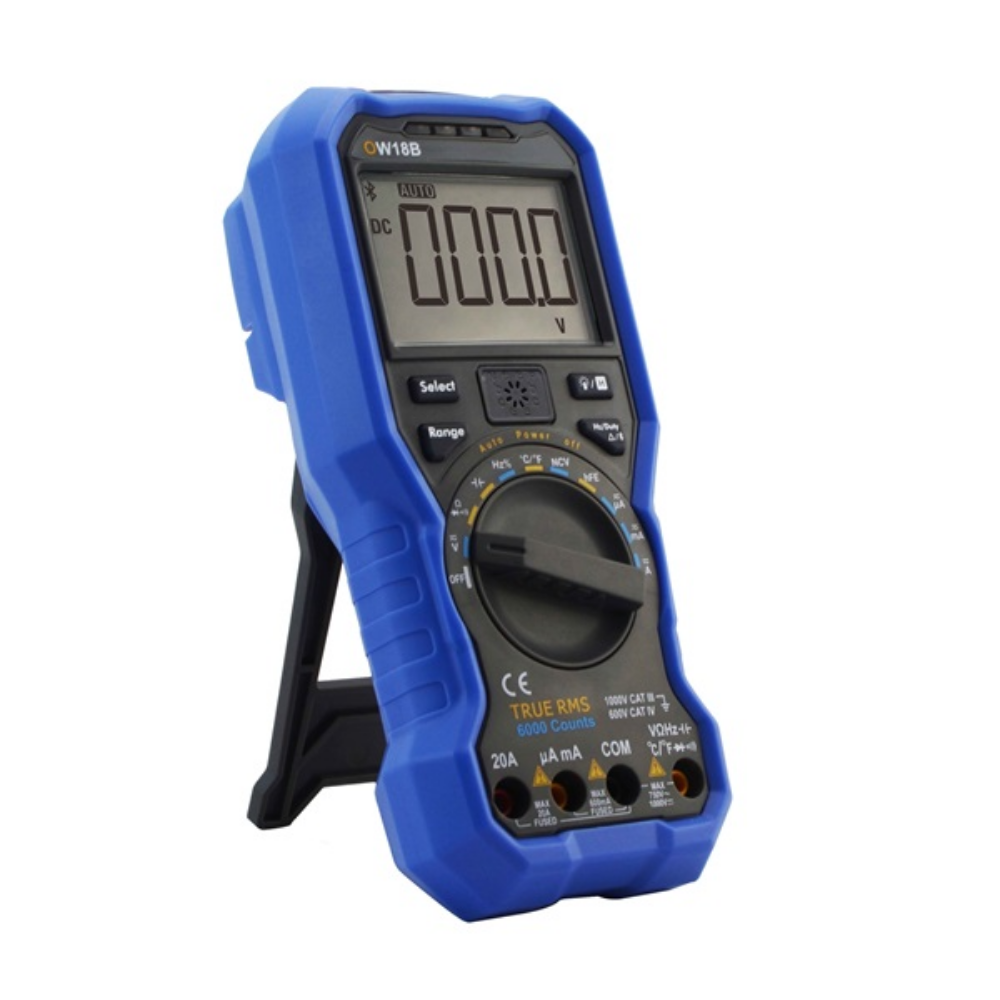

OWON OW18B 3-in-1 Smart Bluetooth Digital Multimeter

OWON OW18B 3-in-1 Smart Bluetooth Digital Multimeter

The OWON OW18B is a versatile and feature-rich digital multimeter designed for professionals and enthusiasts alike. This 3-in-1 device functions as a multimeter, thermometer, and data logger, providing comprehensive measurement capabilities in a single tool. Equipped with Bluetooth 4.0 wireless transmission, it allows for seamless connection to Android, iOS, and Windows devices, enabling real-time data monitoring and analysis. The multimeter boasts a 5999-count display with True RMS measurement, ensuring accurate readings across various electrical parameters. Its non-contact voltage (NCV) detection enhances safety during measurements, while the built-in flashlight aids in low-light conditions. With offline recording functionality, users can store data for up to 7 days and later upload it for analysis.

🔑 Key Features

• 3-in-1 Functionality: Combines multimeter, thermometer, and data logger capabilities.

• Bluetooth 4.0 Connectivity: Supports wireless data transmission to mobile devices.

• True RMS Measurement: Ensures accurate AC voltage and current readings.

• Non-Contact Voltage (NCV) Detection: Enhances safety by detecting live wires without direct contact.

• Offline Data Logging: Stores measurement data for up to 7 days for later analysis.

• Large 5999-Count Display: Provides clear and precise readings.

• Temperature Measurement: Measures temperatures from -50°C to +400°C.

• Flashlight Function: Illuminates work areas in low-light conditions.

• Multi-Device Monitoring: Allows multiple OW18B units to connect to a single mobile device for simultaneous monitoring.

📊 Specifications

• Display: 5999-count LCD with backlight.

• Voltage Measurement:

  • DC: 0.1 mV to 1000 V.

  • AC: 1 mV to 750 V.

• Current Measurement:

  • DC: 0.01 µA to 20 A.

  • AC: 0.01 mA to 20 A.

• Resistance Measurement: 0.1 Ω to 60 MΩ.

• Capacitance Measurement: 0.01 nF to 60 mF.

• Frequency Measurement: 0.001 Hz to 10 MHz.

• Temperature Measurement: -50°C to +400°C.

• Data Logging: Stores up to 7 days of measurement data.

• Bluetooth Connectivity: BLE 4.0 wireless transmission.

• Safety Rating: CAT IV 600V, CAT III 1000V.

• Dimensions: 190 x 90 x 56 mm.

• Weight: Approximately 0.30 kg.

🛠️ Applications

• Electrical Troubleshooting: Ideal for diagnosing issues in electrical circuits and components.

• HVAC Systems: Suitable for testing and maintaining HVAC control systems.

• Industrial Equipment: Perfect for servicing industrial equipment and machinery.

• Educational Use: Great for teaching and learning about electrical measurements and concepts.

• DIY Projects: Perfect for hobbyists working on various electronic projects.
