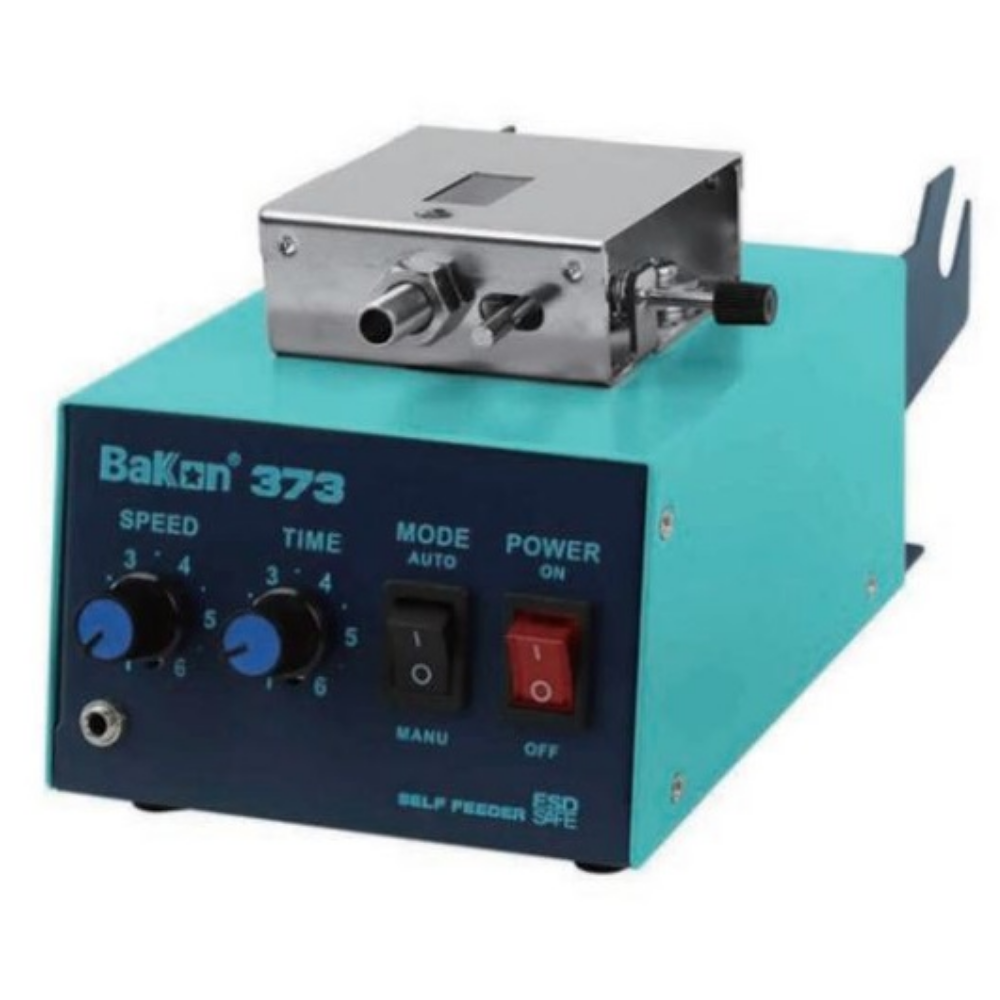

Bakon BK373 Automatic Solder feeding system
Bakon 373 Automatic tin-out matching system, suitable for a variety of soldering irons and soldering stations, to achieve one-hand operation;
Automatic tin-out function, pull-code switch design, tin-out speed, tin output, tin-out interval are adjustable, and Adjust the tin back function to reduce welding waste. There are two kinds of automatic and manual tinning methods, which can be equipped with a foot tin switch and a manual tin switch.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Bakon BK373 Automatic Solder feeding system
The Bakon BK373 is an automatic solder feeding system designed to streamline and improve the efficiency of soldering work. It’s compatible with a variety of soldering stations and irons, allowing for one-handed operation which is a significant advantage in production and repair environments. The system features a step motor that precisely controls the solder wire feed, and users can adjust key parameters like the feeding speed, the amount of solder dispensed, and the interval between feeds. The unit also has an adjustable “solder return” function to prevent waste. It supports both automatic and manual feeding methods, and often includes a foot pedal switch for hands-free control, making it a versatile tool for professionals seeking to increase productivity and consistency in their soldering tasks.

| TECHNICAL DETAILS | |
|---|---|
| Manufacturer | ‎BAKON |
| Part Number | Bakon BK373 |
| Model No | BK373 |
| Voltage | ‎220VAC,50Hz |
| Feeder speed | ‎14-35mm/s |
| Colour | ‎Green/Black |
| Motor power | DC24V 3.2W |
| Sending amount of tin | ‎0-120mm |
| Tin wire diameter | ‎0.6   0.65   0.8    1.0   1.2    1.6 |
| SIZE | ‎ 215*107*110mm |
| Item Package Quantity | ‎1 |
| Weight | 1.7KG |
| Warranty | 1 Year |
| Weight | 1.7 kg |
|---|
