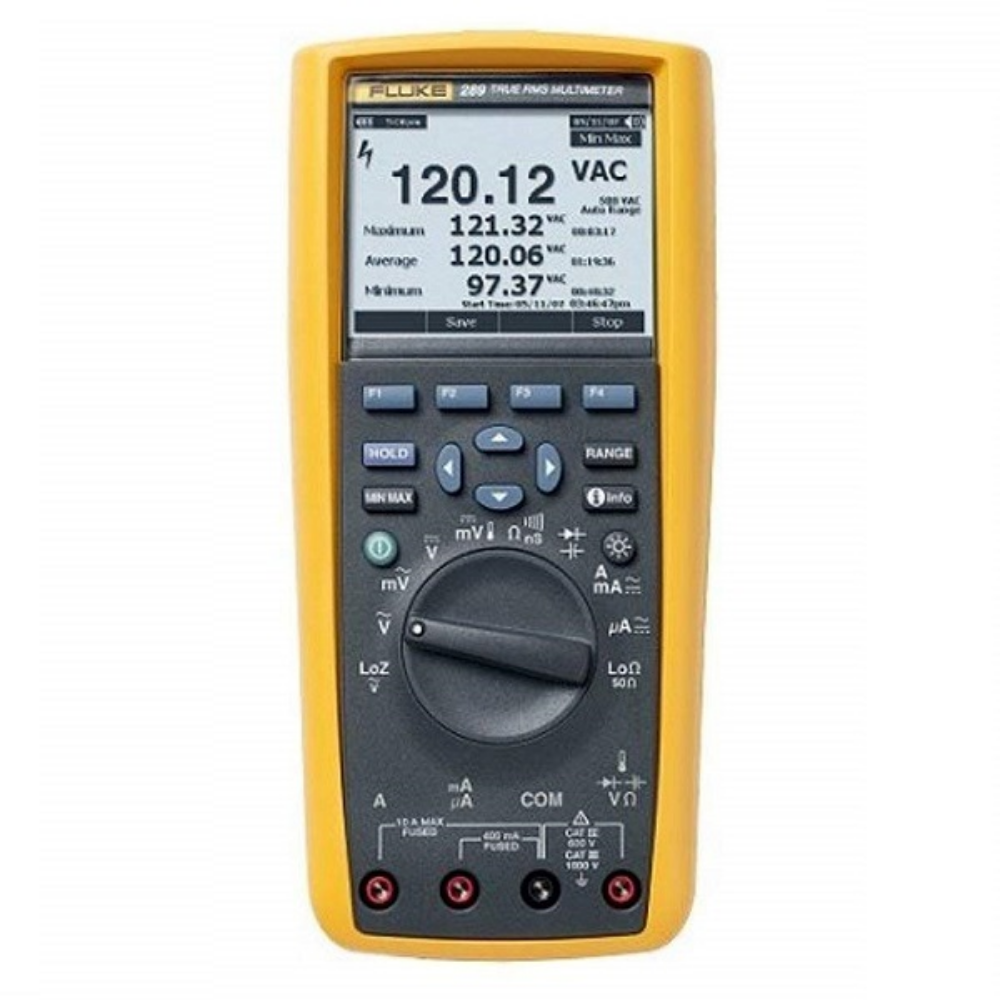

Fluke 289 True-RMS Industrial Logging Multimeter

Fluke 289 True-RMS Industrial Logging Multimeter

The Fluke 289 is a high-performance True-RMS industrial logging multimeter designed to address complex electrical and electro-mechanical issues in fields like electronics, plant automation, power distribution, and electro-mechanical equipment. It offers advanced data logging and graphical trend analysis capabilities, making it an essential tool for professionals seeking to diagnose and troubleshoot intermittent problems efficiently.

Key Features:

• True-RMS Measurements: Accurately measures AC and DC voltage and current, ensuring reliable readings even with non-linear signals.

• TrendCapture™: Graphically displays logged data sessions, allowing users to quickly identify anomalies without the need for a PC.

• 14x Zoom Functionality: Provides an unprecedented ability to zoom in on TrendCapture data, facilitating detailed analysis.

• Selectable AC Filter: Helps display steadier readings when the input signal is changing rapidly or is noisy.

• Low Pass Filter: Ensures accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment.

• Low Impedance (LoZ) Voltage Function: Eliminates ghost voltages, enhancing measurement accuracy.

• Adjustable Recording and Auto Hold Thresholds: Specifies a percentage change in the readings that initiates a new event, aiding in precise data capture.

• Large Display: Features a 50,000-count, 1/4 VGA dot matrix display with white backlight for clear visibility in various lighting conditions.

• Real-Time Clock: Automatically time-stamps saved readings, ensuring accurate documentation.

• Fluke Connect Compatibility: When paired with the optional ir3000 FC wireless connector, enables remote monitoring and sharing of readings via the Fluke Connect mobile app.

What’s in the Box:

• Fluke 289 True-RMS Industrial Logging Multimeter

• TL71 Test Leads

• AC175 Alligator Clips

• 6 AA Batteries (installed)

• Quick Reference Guide

Specifications:

• Voltage Measurement Range: 50.000 mV to 1000.0 V (AC/DC)

• Current Measurement Range: 500.00 μA to 10.000 A (AC/DC)

• Resistance Measurement Range: 50.000 Ω to 500.0 MΩ

• Capacitance Measurement Range: 1.000 nF to 100 mF

• Temperature Measurement Range: -200.0°C to 1350.0°C

• Display: 50,000-count, 1/4 VGA dot matrix with white backlight

• Battery Life: Approximately 100 hours (200 hours in logging mode) on 6 AA alkaline batteries

• Safety Rating: CAT III 1000 V / CAT IV 600 V

For more detailed information, you can visit the official Fluke product page:

Technical Specifications
DC volts: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
Basic accuracy 0.025%
– AC volts: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
Basic accuracy 0.4% (True-RMS)
– DC current Range / resolution 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Basic accuracy 0.05%
– AC current: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Basic accuracy 0.6% (True-RMS)
– Temperature (excluding probe) Range / resolution -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
Basic accuracy 1.0%
– Resistance: 50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
Basic accuracy 0.05%
– Capacitance Range / resolution 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
Basic accuracy 1.0%
– Frequency Range / resolution 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Basic accuracy 0.005%
