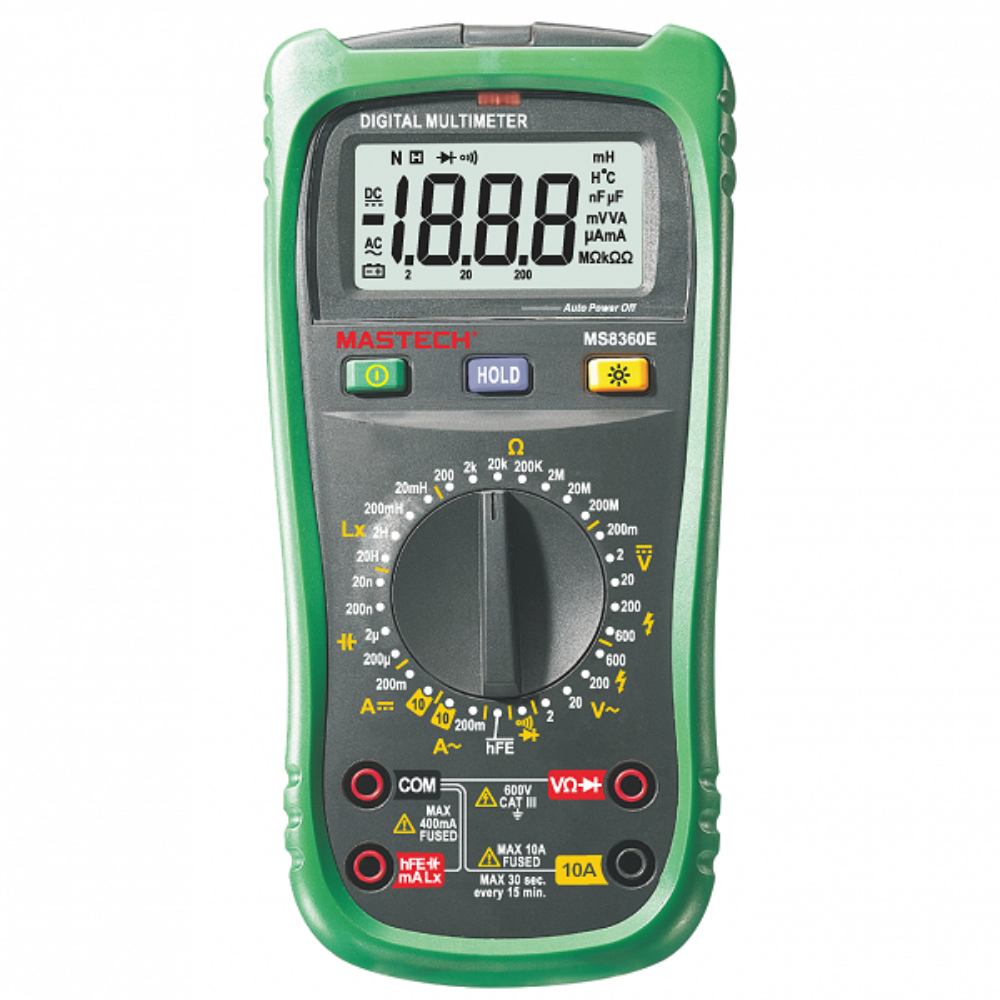

Mastech MS8360E Digital Multimeter

Mastech MS8360E Digital Multimeter

The Mastech MS8360E is a versatile and feature-rich digital multimeter designed for professionals and enthusiasts alike. This device is capable of measuring a wide range of electrical parameters, including AC/DC voltage, current, resistance, capacitance, inductance, frequency, temperature, and transistor hFE. It also features a non-contact voltage (NCV) detector, enhancing safety during electrical testing. With a 2000-count LCD display, the MS8360E provides clear and precise readings. Its auto power-off function helps conserve battery life, while the data hold and backlight features add convenience during measurements.

🔑 Key Features

• Comprehensive Measurement Capabilities: Measures AC/DC voltage, current, resistance, capacitance, inductance, frequency, temperature, and transistor hFE.

• Non-Contact Voltage (NCV) Detection: Detects the presence of voltage without direct contact, enhancing safety.

• 2000-Count LCD Display: Provides clear and precise readings.

• Auto Power Off: Conserves battery life by automatically turning off the device after a period of inactivity.

• Data Hold Function: Freezes the current reading on the display for easy recording.

• Display Backlight: Allows for measurements in low-light conditions.

• Low Battery Indicator: Alerts the user when battery replacement is needed.

• Transistor hFE Testing: Tests the gain of transistors with a range of 0 to 1000.

• CE / ETL / RoHS Certified: Meets international safety and environmental standards.

📊 Specifications

• DC Voltage: 200mV/2V/20V/200V (±(0.5%+2)), 600V (±(0.8%+2))

• AC Voltage: 2V/20V/200V (±(0.8%+5)), 600V (±(1.2%+3))

• DC Current: 200mA (±(1.5%+1)), 10A (±(2.0%+5))

• AC Current: 200mA (±(1.8%+3)), 10A (±(3.0%+7))

• Resistance: 200Ω (±(0.8%+5)), 2kΩ/20kΩ/200kΩ/2MΩ (±(0.8%+5)), 20MΩ (±(1.0%+2)), 200MΩ (±(5.0%+5))

• Capacitance: 20nF/200nF/2μF (±(4.0%+5)), 200μF (±(5.0%+5))

• Inductance: 20mH/200mH/2H/20H (±(3.0%+5))

• Frequency: 0.001Hz to 10MHz

• Temperature: -40°C to +1000°C

• Transistor hFE: 0 to 1000

• Display: 2000-count LCD with backlight

• Power Supply: 2 x 1.5V AAA batteries (not included)

• Safety Rating: CAT III 600V

• Dimensions: Approximately 190 x 90 x 50 mm

• Weight: Approximately 0.35 kg

🛠️ Applications

• Electrical Troubleshooting: Ideal for diagnosing issues in electrical circuits and components.

• HVAC Systems: Suitable for testing and maintaining HVAC control systems.

• Industrial Equipment: Perfect for servicing industrial equipment and machinery.

• Educational Use: Great for teaching and learning about electrical measurements and concepts.

• DIY Projects: Perfect for hobbyists working on various electronic projects.

  – DC Voltage: 200mV/2V/20V/200V 0.1mV/1mV/10mV/100mV ±(0.5%+2)
  600V 1V ±(0.8%+2)
  – AC Voltage: 2V/20V/200V 1mV/10mV/100mV ±(0.8%+5)
  600V 1V ±(1.2%+3)
  – DC Current: 200mA 0.1mA ±(1.5%+1)
  10A 10mA ±(2.0%+5)
  – AC Current: 200mA 0.1mA ±(1.8%+3)
  10A 10mA ±(3.0%+7)
  – Resistance: 200Ω 0.1Ω ±(0.8%+5)
  2kΩ/20kΩ/200kΩ/2MΩ 1Ω/10Ω/100Ω/1kΩ ±(0.8%+5)
  20MΩ 10kΩ ±(1.0%+2)
  200MΩ 0.1MΩ ±(5.0%+5)
  – Capacitance 20nF/200nF/2μF 0.01nF/0.1nF/0.001μF ±(4.0%+5)
  200μF 0.1μF ±(5.0%+5)
  – Inductance 20mH/200mH/2H/20H
  0.01mH/0.1mH/1mH/10mH ±(3.0%+5)
  – Power Supply : 1x9V 6F22 Battery
  – Product Size : 188mmx92mmx50mm/7.4″x3.6″x2.0″
  – Product Weight : 380g/0.83lb
  – Certificate : CE / ETL / RoHS
  – Safety Rating : CAT III 600V

  Warranty: As per Mastech Warranty Policy
